NO NC G180 Photoelectric Cell Switch For Checking Out Broken / Faulted Tobacco

Name: NO NC G180 Photoelectric Cell Switch For Checking Out Broken Faulted Tobacco
Brand: Winston/OEM
Price: 1 USD

China NO NC G180 Photoelectric Cell Switch For Checking Out Broken / Faulted Tobacco wholesale

Brand Name : Winston/OEM

Model Number : G180

Certification : CE,ROSH

Place of Origin : China,Zhejiang

MOQ : 1PCS

Price : Negotiable

Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD

Supply Ability : 10000PCS/Month

Delivery Time : 3-15days after get payment.

Packaging Details : Export standard carton box

Warranty : 2 Years

Condition : Original new

Protection grade : IP66

Shell material : Plastic

Working temperature : -25~-55℃

OEM : YES

ODM : YES

Detected object : Transparent or opaque body

DC/AC Consumption current : DC<15mA, AC<10mA

Theory : Optical Sensor

Contact Now

NO NC G180 Photoelectric Cell Switch For Checking Out Broken / Faulted Tobacco

Specifications

* G180 Photoelectric sensor switch
* OEM,ODM
* Detection distance: 10cm,2m,5m
* NPN,PNP
* NO,NC,NO+NC

Application illustration or photoelectric switch

1 . Decection of thick carton

2 . Check out the broken strip from carding machine

3 . Built-in-power type photoelectric switch

4 . Check out the broken or faulted tobacco rolling paper

5 . Product accounting

Photoelectric switch Principle of photoeletric switch

The working principle of the photoelectric switch is that when the beam emitted by the emitter is blocked or partly reflected by the object, the beam by the emitter is blocked or partly reflected by the object, the beam receiver whereby makes a judgment and reacts.

Model composeition and definition of infrared ray photoelectric switch

G 18 3 A 10 N A □
—— —— —— —— —— —— —— ——
1 2 3 4 5 6 7 8

Technical Parameters:

Diffuse type	Detection distance			10cm
	10-30VDC	NPN	NO	G180-3A10NA
			NC	G180-3A10NB
			NO+NC	G180-3A10NC
		PNP	NO	G180-3A10PA
	90-250VAC		NC	G180-3A10PB
			NO+NC	G180-3A10PC
		SCR Contro Hable silicon	NO	G180-2A10LA
			NC	G180-2A10LB
		Relay output
Retroreflective type	Detection distance			2m
	10-30VDC	NPN	NO	G180-3B2NA
			NC	G180-3B2NB
			NO+NC	G180-3B2NC
		PNP	NO	G180-3B2PA
	90-250VAC		NC	G180-3B2PB
			NO+NC	G180-3B2PC
		SCR Contro Hable silicon	NO	G180-2B2LA
			NC	G180-2B2LB
		Relay output
Through beam	Detection distance			5m
	10-30VDC	NPN	NO	G180-3C5NA
			NC	G180-3C5NB
			NO+NC	G180-3C5NC
		PNP	NO	G180-3C5PA
	90-250VAC		NC	G180-3C5PB
			NO+NC	G180-3C5PC
		SCR Contro Hable silicon	NO	G180-2C5LA
			NC	G180-2C5LB
		Relay output
DC/SCR Control output				DC:200mA
DC/AC Consumption current				DC<15mA,AC<10mA
DC/AC Response time				AC/Dc<2ms
Directional angle				3 . -10 .
Detected object				transparent or opaque body
Working environment temperature				25~+55ºC
Intensity of illumination of working environment				Sunlight under 1000LX incandescent lamp under 3000LX
Shell material				Plastic
Protection grade				IP54

Dimension

NO NC G180 Photoelectric Cell Switch For Checking Out Broken / Faulted Tobacco

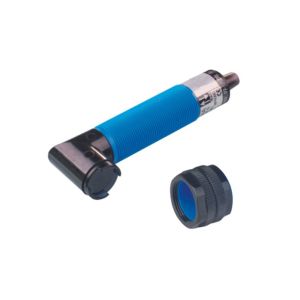

Product Picture

NO NC G180 Photoelectric Cell Switch For Checking Out Broken / Faulted Tobacco
